| ब्रांड नाम: | Customized |
| एमओक्यू: | 300 |
| कीमत: | Negotiatable |
| भुगतान की शर्तें: | ,L/C,T/T |
| आपूर्ति करने की क्षमता: | 100000PCS/Month |

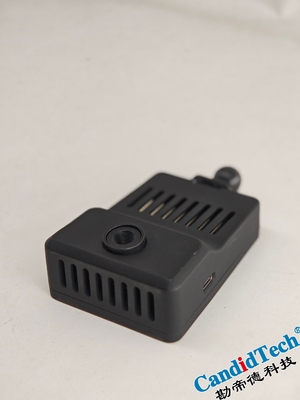

Automotive 1080P night vision anti-collision ADAS suitable for various models
While traditional aftermarket equipment is still plagued by frequent false alarms, our ADAS system reshapes the safety bottom line with Japanese OEM certification standards.
Through rigorous verification from -40℃ extreme cold start (≤6 seconds) to 85℃ high temperature exposure, it ensures stable operation in extreme scenarios such as mining excavators and plateau freight trucks.
SPECIFICATIONS of ADAS
Hardware Parameters
| Camera sensor | Sony IMX 307 |
| HFOV | 45° |
| VFOV | 35° |
| Frame rate | 30fps |
| Lens | 4G |
| Resolution | 1080P |
| Operating voltage | 9V--16V |
| Operating current | <1A |
| Static current | <0.4MA |
| Video input | LVDS |
| Video output | NA |
| Output voltage | 12V |
| Cold start time | ≤6s |
| Operating temperature | -40℃—85℃ |
| Storage temperature | -40℃—95℃ |
Software specifications
| Function Point | Function | Function Description |
| AI Function | Reminder for the vehicle ahead too close | Speed > 30Km/h, 1.6 seconds in advance |
| Reminder for the vehicle ahead starting | Speed < 20Km/h, the vehicle ahead > 3 meters away Alarm | |
| Reminder for collision avoidance (FCW) |
At high speed, 3 sec in advance At low speed, 1.5 sec in advance |
|
| Driving on the lane | Detects whether the vehicle deviates from the lane line | |
| Calibration | Self-calibration | Fast calibration, supports repeated calibration |
| Factory calibration | Meets the requirements of the original factory |
Product Features
1. Lane Departure Warning
2.Forward Move Warning
Night vision revolution: F1.6 ultra-large aperture with 4G lens outputs 1080P high-definition images at 0.01 lux illumination, and the nighttime pedestrian recognition distance is increased by 40%. The AI brain uses quantitative pruning + knowledge distillation lightweight technology to achieve an industry breakthrough of ≤1 false alarm rate per 100 kilometers in 30fps real-time processing!
Deep customization capabilities can better meet the needs of multiple scenarios:
1.Passenger cars: front vehicle collision avoidance (3 seconds at high speed/1.5 seconds at low speed) + driving monitoring when crossing the line
2.Commercial fleets: front vehicle start reminder (triggered by 3-meter safety distance) + driving behavior analysis SDK access
3.Special machinery: wide voltage (9-16V) anti-interference design, <0.4mA ultra-low sleep power consumption
Provide a scalable security middle platform for the automotive OEM and commercial vehicle aftermarket, making millimeter-level prediction capabilities accessible to every road.
For more information innovative features and functions of Candid's Automotive Infrared ADAS, please visit [https://www.candidelectronics.com].
Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: litmea.mo@candidelectronics.com for more details.
